Realacc HUBOSD ECO X Type w/STOSD8 Current Sensor
Comments

Realacc HUBOSD ECO X Type w/STOSD8 Current Sensor

(No reviews yet) Write a Review
$32.00
SKU:
473526
Availability:
Usually ships next working day
Shipping:
Calculated at Checkout

Description:

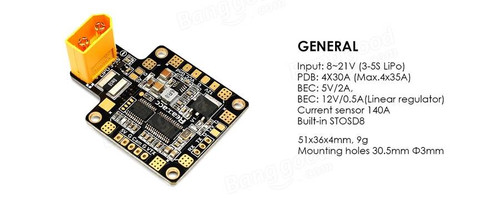

The HUBOSD8 has been engineered to provide the highest possible performance and reliability in a 46*36mm & 4 layers PCB.
It is a multifunctional HUB with PDB, BEC 5V/2A &12V/500mA, Current sensor 140A, STOSD8. It is specially made for the mini FPV Quad.
The BEC 12V is linear regulator, no LC Filter needed. Built-in STOSD8 can support Plug & Play, no complicated settings needed.

Specifications:

  • Brand name: Realacc
  • Input voltage range (3S-5S operation): 8 - 21VDC
  • PDB: 4x30A (Max.4x35A)
  • Regulated 5V and 12V outputs
  • Current Sensor 140A
  • Built-in STOSD8

Physical:

  • 2oz copper, 4-layers &1.6mm PCB.
  • 1x Battery input, 4x ESC outputs. 2x BEC 5V outputs, 2x BEC 12V outputs.
  • Camera signal & Gnd pads, Video Transmitter Signal & Gnd pads
  • 1x Serial port (RX, TX, G)
  • Dimensions: 51x36x4mm, Weight: 9g
  • Mounting holes 30.5mm square spacing, Φ3mm

PDB (ESC outputs):

  • Continuous current: 30A per output
  • Peak current (10 seconds/minute): 35A per output

BEC 5V outputs:

  • Designed for RC Receivers, Flight controllers, OSD, and Servos.
  • DC/DC synchronous buck regulator.
  • Voltage: 5.0 +/- 0.1VDC
  • Continuous current: 2 Amps (Max.2.5A 10s/minute)
  • Output Ripple: 40mV (VIn=16V, VOut=5V@2A load)
  • Short-circuit tolerant (5 seconds/minute)

BEC 12V outputs:

  • Linear regulator, very low noise. LC Filter is needless.
  • Designed for Video TX or FPV camera.
  • Voltage: 12.0 +/- 0.3VDC (4~5S operation)
  • Continuous current: 500mA@16V IN, 400mA@20V IN
  • Short-circuit tolerant (2 seconds/minute)
  • If the battery is 3S LiPo, Output voltage=3S LiPo voltage - 1V

Current Sensor:

  • 140A
  • If current >140A. STOSD display 140A

STOSD8:

  • Running indicator
  • Blue LED blinks: STOSD is initializing
  • Blue LED light: STOSD is working

Autodetect PAL/NTSC:

  • Auto sense PAL / NTSC cam at OSD startup. Default is NTSC without Cam signal

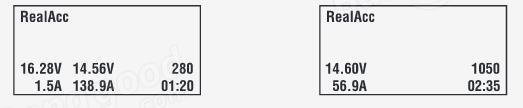

Dynamic on screen info:

  • Current < 2A & keep 5 seconds Current > 2A


Min.Volt & Max.Amp recorder
Automatic flight timer
Current > 2A, Time in. Current < 2A,Time out..

Auto battery cells detection
If the Input voltage is in the range of following, The HUBOSD will detect the cell
numbers automatically.
11.1~13.05V: 3cells LiPo, 14.8~17.4V: 4cells LiPo, 18.5~21V: 5cells LiPo
If the input voltage is out of the range. The voltage value will blink on screen.
Pls check if the battery total voltage is below 3.7V*cells

Low vlotage alarm:

  • (Value blinks): Default 3.6V* cells
  • Exceeding mAh alarm
  • (Value blinks): Default 1000mAh

Onscreen Pilot ID:

  • Default is disable. you can type some words & enable it in GUI

Firmware up-gradable:

  • Voltage precision: +/- 0.4%, Voltage resolution: 0.01V
  • Current precision: +/- 1.5%, Current resolution: 0.1A
